| The WU-2x series combines advanced digital sensor concepts with analog like output signals to provide safe and accurate pressure measurements that meet the demands of today's market. The pressure measurement based on vacuum benchmark, as well as electronic measures for interference shielding and signal noise elimination, ensure high-precision pressure measurement and excellent long-term stability. The active temperature compensation function reduces the impact of temperature changes on the sensor, ensuring safe operation even in applications with large temperature fluctuations (such as Joule Thomson effect under gas expansion) or in areas without air conditioning. WU-25 (pipeline type) and WU-26 (surface mounted type) sensors are specifically designed to withstand the torsional stress that often occurs during installation. The special design of thin film sensors eliminates the risk of sensor failure caused by loads at process connections or welding joints. |
|

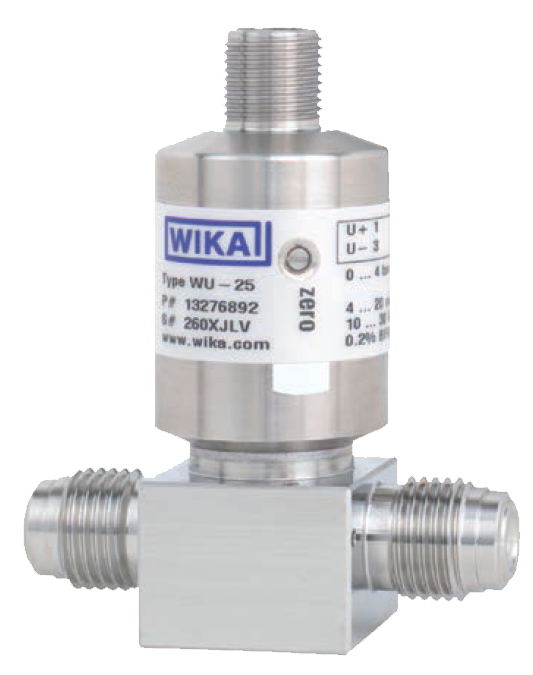

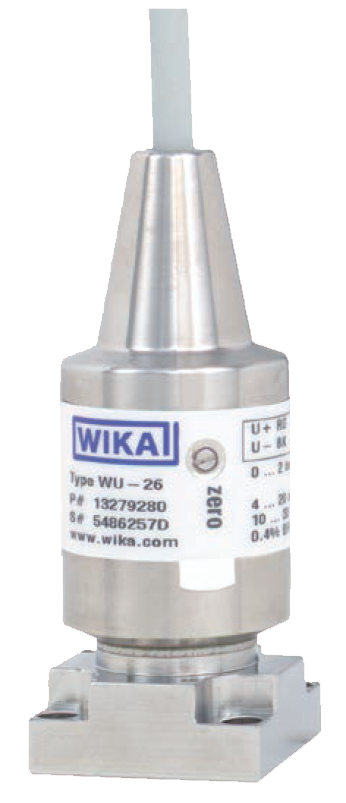

| WIKA Pressure Products-Ultra high purity transducer WU-20, 25, 26 |
| |
| WU-20,25,26 Special features |
 High-accuracy pressure measurement 0.15 % RSS
Excellent long-term stability
Signal noise cancellation and shielding
Active temperature compensation
WIKA data sheet PE 87.07
ATEX and IECEx zone 2 approval
Class I, div. 2, groups A, B, C and D |
| WU-20,25,26 Style |
   |
| WU-20,25,26 Selection Table |
| WU-20 |
0 ... 0.2Mpa |
1/4" weld stub |
4...20mA |
DC 10...30V |
M12 x 1 |
- |
|
Model |
Measurement Range |
Process connection
|
Output Signal |
Auxiliary power |
Electrical connection |
Cable length |
Approval |
WU-20
WU-25
WU-26 |
0 ... 0.2Mpa
0 ... 3.6Mpa
0 ... 0.4Mpa
0 ... 7Mpa
0 ... 0.7Mpa
0 ... 10Mpa
0 ... 1.1Mpa
0 ... 14.5Mpa
0 ... 1.7Mpa
0 ... 22.5Mpa
0 ... 2.5Mpa
0 ... 36Mpa |
WU-20
¼" swivel union nut
¼" male swivel nut
¼" T-connector
¼"weld stub
WU-25
¼" fixed male nut
¼" swivel union nut
¼" weld stub
WU-26
MSM C-seal 1 ⅛"
MSM W-seal 1 ⅛"
MSM C-seal 1 ½"
MSM W-seal 1 ½" |
Current (2-wire)
4 ... 20 mA
Voltage (3-wire)
DC 0 ... 5 V
DC 0 ... 10 V |
Output signal
DC 0 ... 5 V / 4 ... 20 mA
DC 10 ... 30 V
Output signal
DC 0 ... 10 V DC
14 ... 30 V |
Bayonet connector (4-pin)
Circular connector M12 x 1 (4-pin)
Cable outlet
Sub-D connector (9-pin)
Sub-D HD connector (15-pin) |
|
|
| |
For more range, please refer to the manual data。 |
|
|
|
|
|
|
|
|
|
