| The FPE thermostatic control valve adopts the principle of thermal expansion of paraffin wax, and semi liquid paraffin wax has a higher expansion rate in a smaller temperature range. The self operated temperature control valve core will move inside the liner according to the heating state, thereby achieving the effect of regulating the flow rate. The control temperature of all FPE temperature control valves is pre-set, so there is no need for any adjustment after leaving the factory. |
|
FPE Thermostatic Products |
|
| |
 |
|
| Module No. |
Body Material* |
CONNECTION SIZE |
| *0750 |
AL, B |
3/4" NPT |
| *0750D1 |
AL, B |
3/4" NPT low flow |
| *0750J12 |
AL, B |
SAE 12 3/4" |
| *0750J12D1 |
AL, B |
3/4" SAE 12 low flow |
| *0752 |
AL, B |
1/2" NPT |
| *0752D1 |
AL, B |
1/2" NPT low flow |
| *0750JW |
AL, B |
3/4" NPT Two Way |
| *0750JWJ12 |
AL, B |
SAE 12 3/4" Two Way |
REPLACE * WITH BODY MATERIAL: AL= ALUMINUM, B= BRONZE |

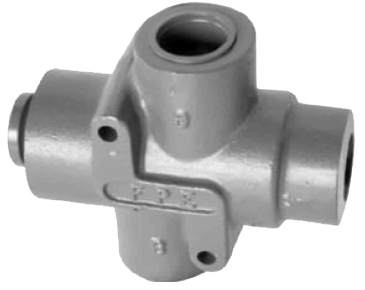

| 0750 Styles |
|
Size Table of 0750 Styles |
 |
|
| Module No. |
Body Material* |
CONNECTION SIZE |
*1010
*1010B |
A, AL, B, D, S, SS |
1" NPT 1" BSPT |
*1110
*1110B |
A, AL, B, D, S, SS |
3/4" NPT 3/4" BSPT |
*1210
*1210B |
A, AL, B, D, S, SS |
1/2" NPT 1/2" BSPT |
| *1010J8 |
A, AL, B, D, S, SS |
SAE 8 1/2" |
| *1010J12 |
A, AL, B, D, S, SS |
SAE 12 3/4" |
| *1010J16 |
A, AL, B, D, S, SS |
SAE 16 1" |
| *1010A |
A, AL, B, D, S, SS |
1" BSPP/JIS Rp |
| *1110A |
A, AL, B, D, S, SS |
3/4" BSPP/JIS RP |
| *1210A |
A, AL, B, D, S, SS |
1/2" BSPP/JIS Rp |
| *1410A |
A, AL, B, D, S, SS |
1 1/4" BSPP/JIS Rp |
REPLACE * WITH BODY MATERIAL: A=CAST IRON, AL= ALUMINUM, B= BRONZE, D=DUCTILE, S=STEEL, SS=STAINLESS |

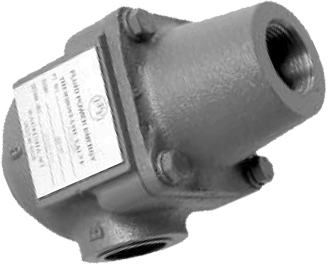

| 1010/1110/1210 Styles |
|
Size Table of 1010/1110/1210 Styles |
 |
|
| Module No. |
Body Material* |
CONNECTION SIZE |
| *1011 |
"A, AL, B, D, S, SS" |
1" NPT |
| *1111 |
"A, AL, B, D, S, SS" |
3/4" NPT |
| *1211 |
"A, AL, B, D, S, SS" |
1/2" NPT |
| *1411 |
"A, AL, B, D, S, SS" |
1 1/4" NPT |
| *1511 |
"A, AL, B, D, S, SS" |
1 1/2" NPT |
REPLACE * WITH BODY MATERIAL: A=CAST IRON, AL= ALUMINUM, B= BRONZE, D=DUCTILE, S=STEEL, SS=STAINLESS |

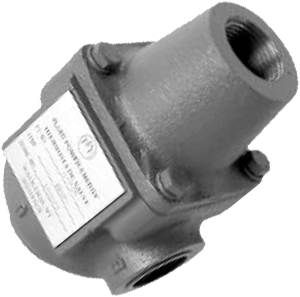

| 1011 Styles |
|
Size Table of 1011 Styles |
 |
|
| Module No. |
Body Material* |
CONNECTION SIZE |
*1530 x
*1530M |
"A, AL, B, D, S, SS" |
1 1/2" NPT |
*1530J16
*1530MJ16 |
"A, AL, B, D, S, SS" |
SAE 16 1 5/16" - 12 |
*1530J20
*1530MJ30 |
"A, AL, B, D, S, SS" |
SAE 20 1 5/8" - 12 |
*1530J24
*1530MJ24 |
"A, AL, B, D, S, SS" |
SAE 24 1 7/8" - 12 |
*1530JU33
*1530MJU33 |
"A, AL, B, D, S, SS" |
JIS-SAE 33 M 33x2.0 |
*1530JU42
*1530MJU42 |
"A, AL, B, D, S, SS" |
JIS-SAE 42M 42x2.0 |
*1530JU48
*1530MJU48 |
"A, AL, B, D, S, SS" |
JIS-SAE 48 M 48x2.0 |
*F1530
*F1530M
*F1530MZ |
A |
1 1/2" 125lbs FF FLANGE |
| B |
1 1/2" 150lbs FF FLANGE |
| D |
1 1/2" 150lbs RF FLANGE |
| S |
1 1/2" 150lbs RF FLANGE |
| SS |
1 1/2" 150lbs RF FLANGE |
*F1530X
*F1530XM
*F1530XMZ |
S, SS |
1 1/2" 300lbs RF FLANGE |
*F1530X - X15
*F1530 - X15M
*F1530 - X15MZ |
S, SS |
1 1/2" 600lbs RF FLANGE |
REPLACE * WITH BODY MATERIAL: A=CAST IRON, AL= ALUMINUM, B= BRONZE, D=DUCTILE, S=STEEL, SS=STAINLESS |

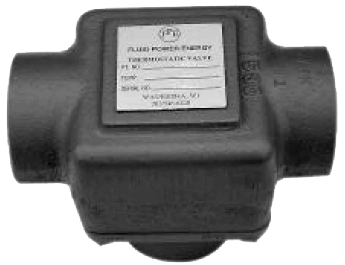

| 1530 Styles |
|
Size Table of 1530 Styles |
 |
|
| Module No. |
Body Material* |
CONNECTION SIZE |
| *2010-1 |
A, AL, B, D, S, SS |
1 1/2" NPT |
| *2010 |
A, AL, B, D, S, SS |
2 NPT |
| *2010-1B |
A, AL, B, D, S, SS |
1 1/2" BSPT |
| *2010B |
A, AL, B, D, S, SS |
2" BSPT |
| *2010-1A |
A, AL, B, D, S, SS |
1 1/2" BSPP |
| *2010A |
A, AL, B, D, S, SS |
2" BSPP |
| *2010J24 |
A, AL, B, D, S, SS |
SAE 24 1 7/8"-12 |
| *2010J32 |
A, AL, B, D, S, SS |
SAE 32 2 1/2-12 |
| *F2010 |
A |
2" 125lbs FF FLANGE |
| B |
2" 150lbs RF FLANGE |
| D |
2" 150lbs RF FLANGE |
| S, SS |
2" 150lbs RF FLANGE |
| *F2010X |
S, SS |
2" 300lbs RF FLANGE |
REPLACE * WITH BODY MATERIAL: A=CAST IRON, AL= ALUMINUM, B= BRONZE, D=DUCTILE, S=STEEL, SS=STAINLESS |

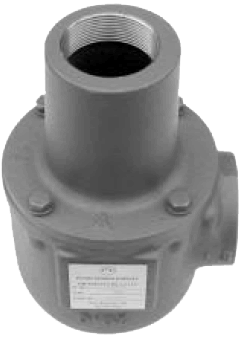

| 2010 Styles |
|
Size Table of 2010 Styles |
 |
|
| Module No. |
Body Material* |
CONNECTION SIZE |
*2012 - 1
*2012 - 1M
*2012 - 1MZ |
"A, B, D, S, SS" |
1 1/2" NPT |
*2012
*2012M
*2012MZ |
"A, B, D, S, SS" |
2" NPT |
*2012J24
*2012J24M
*2012J24MZ |
"A, B, D, S, SS" |
SAE 24 1 7/8" - 12 |
*2012J32
*2012J32M
*2012J32MZ |
"A, B, D, S, SS" |
SAE 32 2 1/2" - 12 |
*F2012
*F2012M
*F2012MZ |
A |
2" 125lbs FF FLANGE |
| B |
2" 150lbs FF FLANGE |
| D |
2" 150lbs FF FLANGE |
| S, SS |
2" 150lbs FF FLANGE |
*F2012X
*F2012XM
*F2012XMZ |
S, SS |
2" 300lbs RF FLANGE |
*F2012 - X5
*F2012 - X15M
*F2012 - X5MZ |
S, SS |
2" 600lbs RF FLANGE |
| *2013 -1 |
"A, B, D, S, SS" |
1 1/2" NPT |
| *2013 |
"A, B, D, S, SS" |
2" NPT |
| *2013J24 |
"A, B, D, S, SS" |
SAE 24 1 7/8" -12 |
| *2013J32 |
"A, B, D, S, SS" |
SAE 32 2 1/2" - 12 |
REPLACE * WITH BODY MATERIAL: A=CAST IRON, AL= ALUMINUM, B= BRONZE, D=DUCTILE, S=STEEL, SS=STAINLESS |

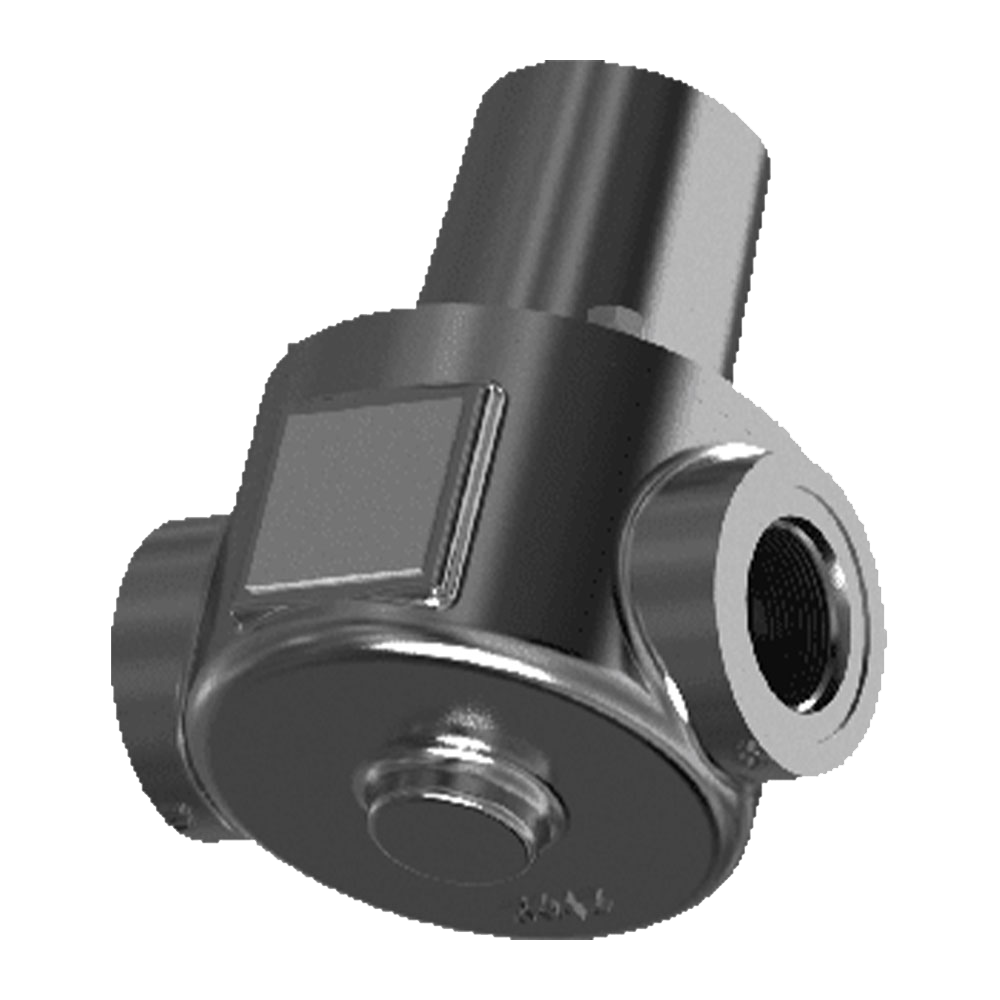

| 2012/2013 Styles |
|
Size Table of 2012/2013 Styles |
 |
|
| Module No. |
Body Material* |
CONNECTION SIZE |
*2014 - 1
*2015 - 1 |
S |
1 1/2" SOCKET WELD |
*2014
*2015 |
S |
2" SOCKET WELD |
*2014 - X16
*2015 - X16 |
S |
2" BUTT WELD |
REPLACE * WITH BODY MATERIAL: S=STEEL |

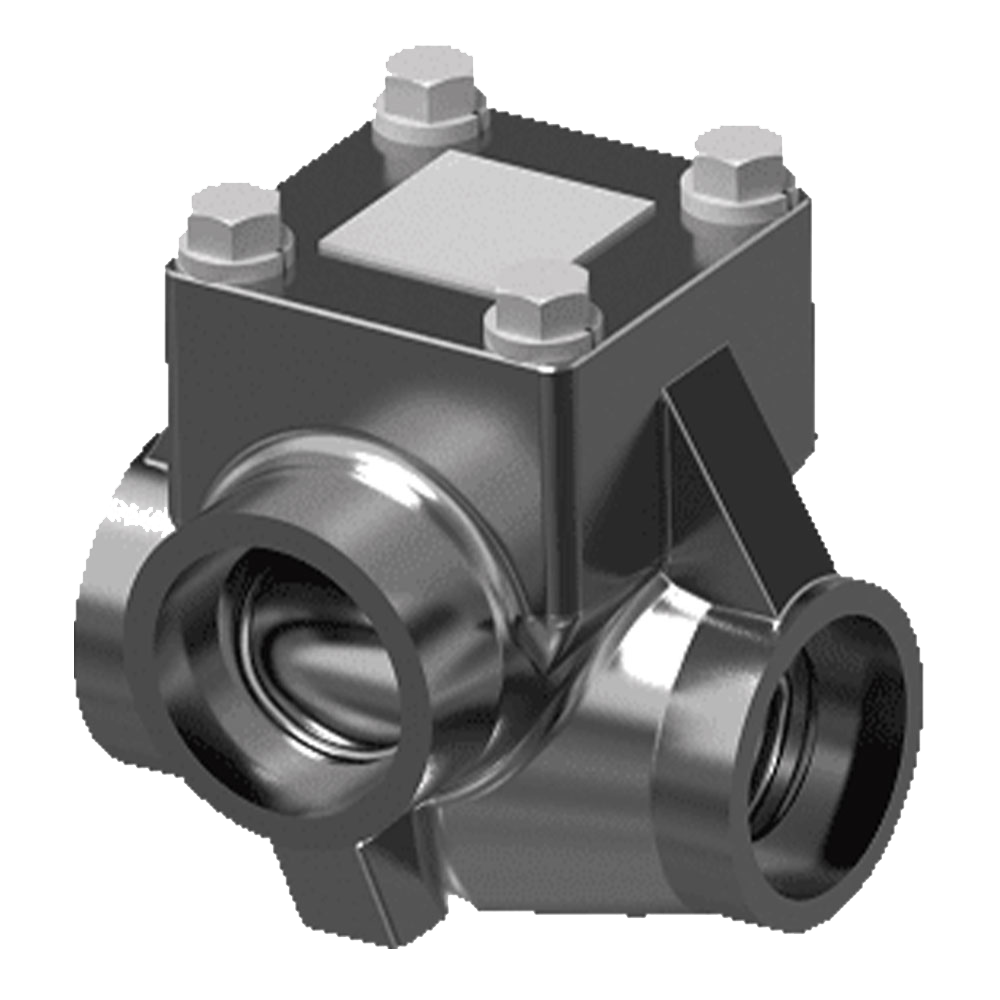

| 2014/2015 Styles |
|
Size Table of 2014/2015 Styles |
 |
|
| Module No. |
Body Material* |
CONNECTION SIZE |
| *2510 |
A |
2 1/2" 125lbs FF FLANGE |
| B |
2 1/2 150lbs FF FLANGE |
| D |
2 1/2" 125lbs FF FLANGE |
| S, SS |
2 1/2" 150lbs RF FLANGE |
| *2510U DN65 RF FLANGE |
A |
PN 10/16 |
| B |
PN 10/16 |
| D |
PN 10/16 |
| S, SS |
PN 10/16 |
*2510X
*2510XM
*2510XMZ |
S, SS |
2 1/2" 300lbs RF FLANGE |
REPLACE * WITH BODY MATERIAL: A=CAST IRON, AL= ALUMINUM, B= BRONZE, D=DUCTILE, S=STEEL, SS=STAINLESS |

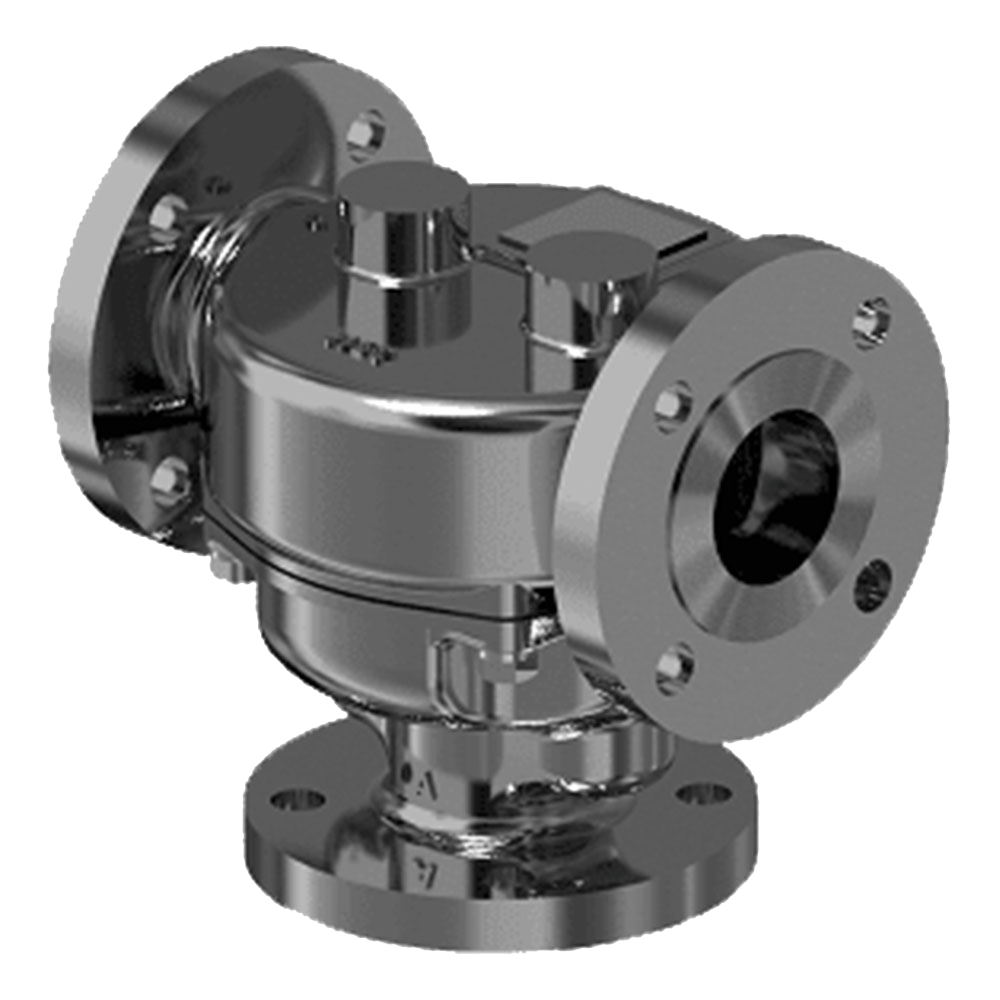

| 2510 Styles |
|
Size Table of 2510 Styles |
 |
|
| Module No. |
Body Material* |
CONNECTION SIZE |
*3010
*3010M
*3010MZ |
A |
3" 125lbs FF FLANGE |
| B |
3" 150lbs FF FLANGE |
| D |
3" 150lbs FF FLANGE |
| S, SS |
3" 150lbs FF FLANGE |
*3010U
*3010UM
*3010UMZ |
A |
80DN PN 10/16 RF FLANGE |
| B |
80DN PN 10/16 RF FLANGE |
| D |
80DN PN 10/16 RF FLANGE |
| S, SS |
80DN PN 10/16 RF FLANGE |
*3010X
*3010XM
*3010XMZ |
S, SS |
3" 300lbs RF FLANGE |
*3010 - X15
*3010 - X15M
*3010 - X15MZ |
S, SS |
3" 600lbs RF FLANGE |
REPLACE * WITH BODY MATERIAL: A=CAST IRON, AL= ALUMINUM, B= BRONZE, D=DUCTILE, S=STEEL, SS=STAINLESS |

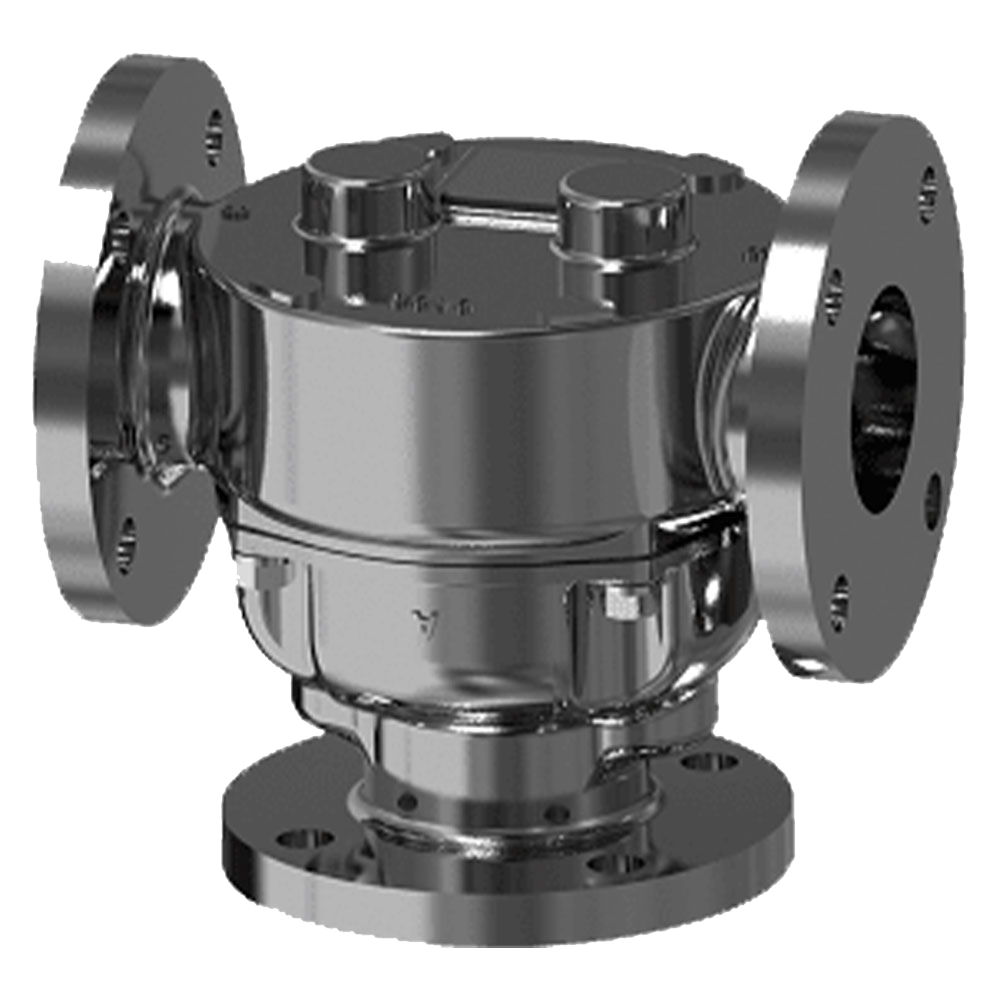

| 3010 Styles |
|
Size Table of 3010 Styles |
 |
|
| Module No. |
Body Material* |
CONNECTION SIZE |
*4010
*4010M
*4010MZ |
A |
4" 125lbs FF FLANGE |
| B |
4" 150lbs FF FLANGE |
| D |
4" 150lbs FF FLANGE |
| S, SS |
4" 150lbs FF FLANGE |
*4010U
*4010UM
*4010UMZ |
A |
100DN PN10/16 RF FLANGE |
| B |
100DN PN10/16 RF FLANGE |
| D |
100DN PN10/16 RF FLANGE |
| S, SS |
100DN PN10/16 RF FLANGE |
*4010X
*4010XM
*4010XMZ |
S, SS |
4" 300lbs RF FLANGE |
*4010 - X15
*4010 - X15M
*4010 - X15MZ |
S, SS |
4" 600lbs RF FLANGE |
REPLACE * WITH BODY MATERIAL: A=CAST IRON, AL= ALUMINUM, B= BRONZE, D=DUCTILE, S=STEEL, SS=STAINLESS |

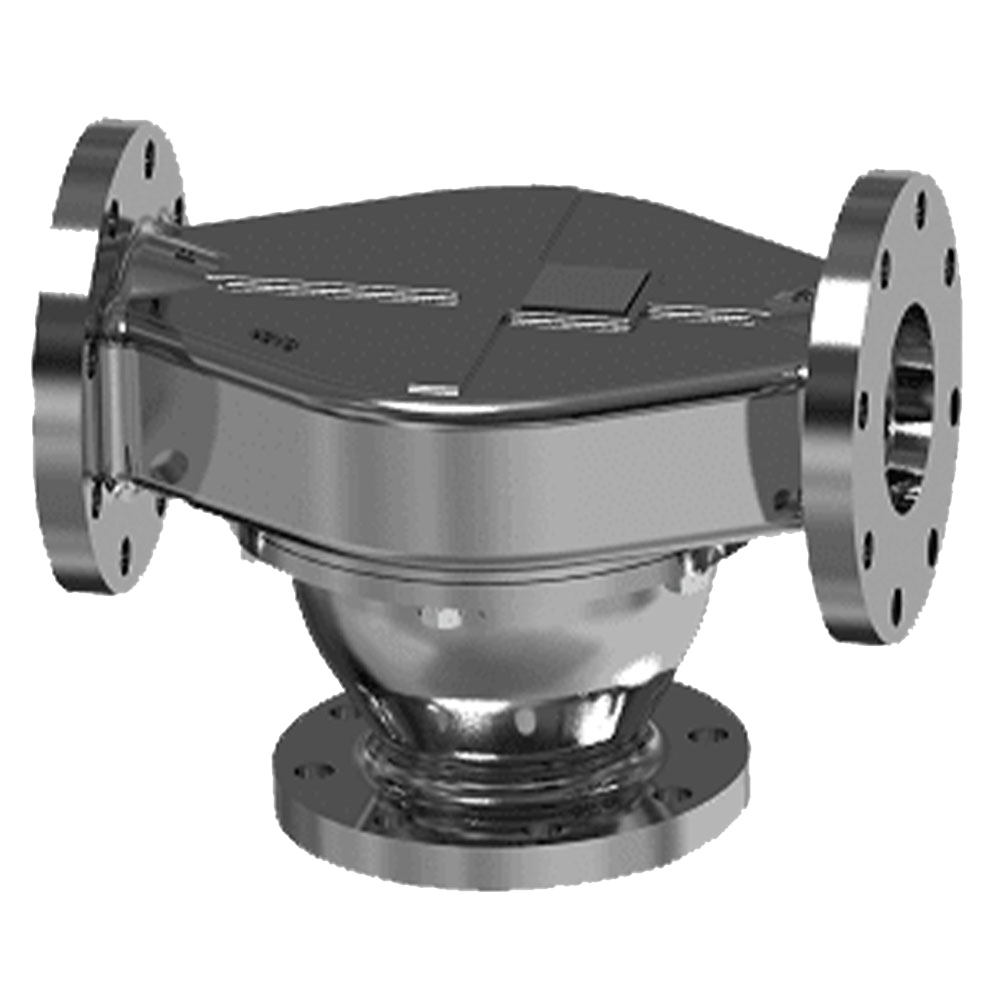

| 4010 Styles |
|
Size Table of 4010 Styles |
 |
|
| Module No. |
Body Material* |
CONNECTION SIZE |
*5010
*5010M
*5010MZ |
A |
5" 125lbs FF FLANGE |
| B |
5" 150lbs FF FLANGE |
| D |
5" 150lbs FF FLANGE |
| S, SS |
5" 150lbs FF FLANGE |
*5010U
*5010UM
*5010UMZ |
A |
125DN PN10/16 RF FLANGE |
| B |
125DN PN10/16 RF FLANGE |
| D |
125DN PN10/16 RF FLANGE |
| S, SS |
125DN PN10/16 RF FLANGE |
REPLACE * WITH BODY MATERIAL: A=CAST IRON, AL= ALUMINUM, B= BRONZE, D=DUCTILE, S=STEEL, SS=STAINLESS |

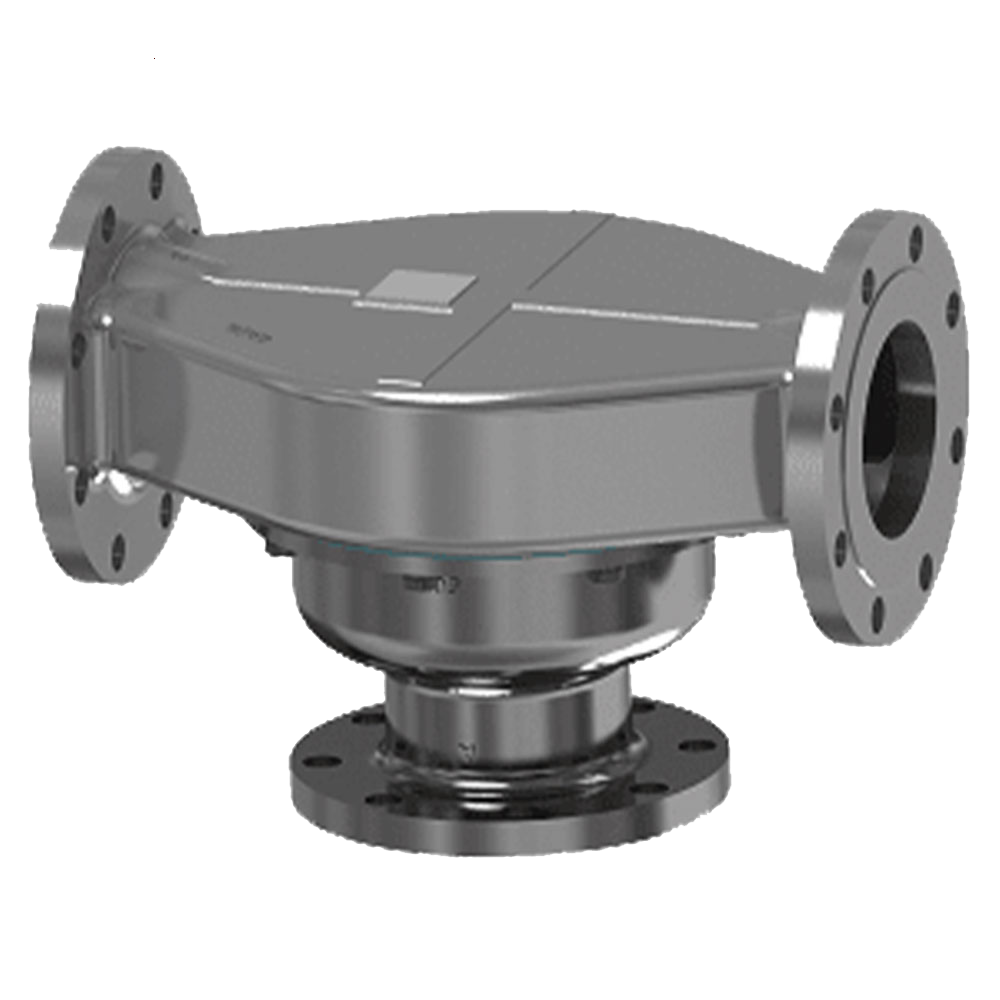

| 5010 Styles |
|
Size Table of 5010 Styles |
 |
|
| Module No. |
Body Material* |
CONNECTION SIZE |
*6010
*6010M
*6010MZ |
A |
6" 125lbs FF FLANGE |
| B |
6" 150lbs FF FLANGE |
| D |
6" 150lbs FF FLANGE |
| S, SS |
6" 150lbs FF FLANGE |
*6010U
*6010UM
*6010UMZ |
A |
150DN PN10/16 RF FLANGE |
| B |
150DN PN10/16 RF FLANGE |
| D |
150DN PN10/16 RF FLANGE |
| S, SS |
150DN PN10/16 RF FLANGE |
REPLACE * WITH BODY MATERIAL: A=CAST IRON, AL= ALUMINUM, B= BRONZE, D=DUCTILE, S=STEEL, SS=STAINLESS |

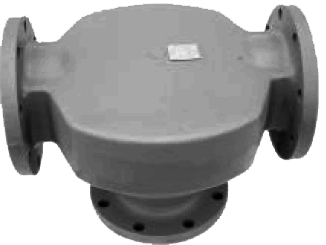

| 6010 Styles |
|
Size Table of 6010 Styles |
|
|
