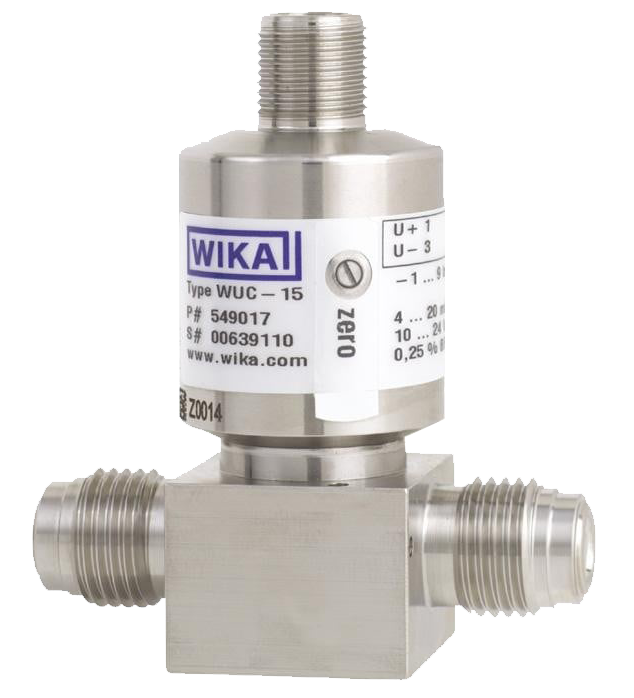

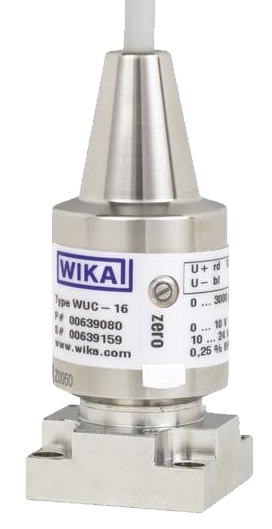

| WUC-10, WUC-15, and WUC-16 are ultra high purity sensors with particularly compact structures, used to measure the pressure of ultra pure gases in the semiconductor industry, especially suitable for hazardous areas. The components in contact with the medium include electrically polished stainless steel 316L that meets the SEMI F20 standard and special 2.4711/UNS R30003 thin film sensors. Sensors have excellent electromagnetic compatibility stability and multiple electrical and process connections. The potentiometer on the side is easy to use and can be easily zeroed. Each sensor undergoes sealing and accuracy checks. |
|
| WIKA Pressure Products-Ultra high purity transducer WUC-10,15,16 |
| |
| WUC-10,15,16 Special features |
 Secure and fast availability
Developed for applications in hazardous areas
Variable: Compact design and many configurations
Accurate measurement, even with high temperature fluctuations |
| WUC-10,15,16 Style |
   |
| WUC-10,15,16 Selection Table |
| WUC-10 |
0 ... 0.2Mpa |
1/4" weld stub |
4...20mA |
DC 10...30V |
M12 x 1 |
- |
|
Model |
Measurement Range |
Process connection
|
Output Signal |
Auxiliary power |
Electrical connection |
Cable length |
Approval |
WUC-10
WUC-15
WUC-16 |
0 ... 0.2Mpa
0 ... 3.6Mpa
0 ... 0.4Mpa
0 ... 7Mpa
0 ... 0.7Mpa
0 ... 10Mpa
0 ... 1.1Mpa
0 ... 14.5Mpa
0 ... 1.7Mpa
0 ... 22.5Mpa
0 ... 2.5Mpa
0 ... 36Mpa |
WU-10
¼" swivel union nut
¼" male swivel nut
¼" T-connector
¼"weld stub
WU-15
¼" fixed male nut
¼" swivel union nut
¼" weld stub
WU-16
MSM C-seal 1 ⅛"
MSM W-seal 1 ⅛"
MSM C-seal 1 ½"
MSM W-seal 1 ½" |
Current (2-wire)
4 ... 20 mA
Voltage (3-wire)
DC 0 ... 5 V
DC 0 ... 10 V |
Output signal
DC 0 ... 5 V / 4 ... 20 mA
DC 10 ... 30 V
Output signal
DC 0 ... 10 V DC
14 ... 30 V |
Bayonet connector (4-pin)
Circular connector M12 x 1 (4-pin)
Cable outlet
Sub-D connector (9-pin)
Sub-D HD connector (15-pin) |
|
|
| |
For more range, please refer to the manual data。 |
|
|
|
|
|
|
|
|
|
