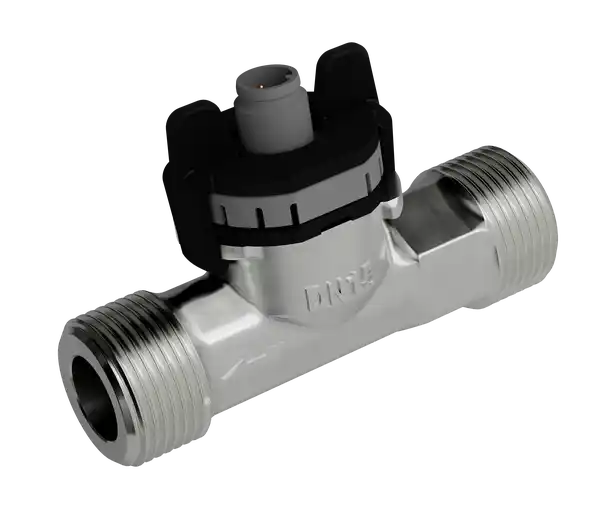

Type 237 flow sensors operate according to the vortex principle, which is based on the Kármán vortex street. This non-mechanical measuring method enables precise and wear-free flow measurement without recalibration. The robust Stainless steel construction ensures high long-term stability and reliability, even in demanding environments. The sensor is designed for Medium temperatures from -15 to +125 °C and is suitable for applications ranging from cryogenic cooling to high temperature processes, such as in injection moulding plants. Integration into existing systems is greatly simplified by the M12x1 connector with IP65 and the plug-and-play design. The type 237 was developed for OEM applications that require precise, maintenance-free and long-term stable flow measurement.

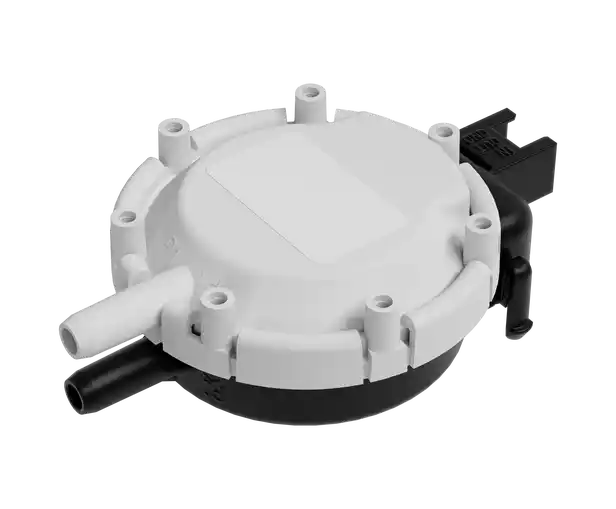

The differential pressure transmitters of Type 402 are ideal for detecting small airflows in HVAC systems and for measuring low pressures in the environmental and medical sectors. Sensors specifically developed for each pressure range enable physically accurate and long-term stable measurements. They allow for simple and quick installation, either directly onto a mounting plate or onto a PCB.

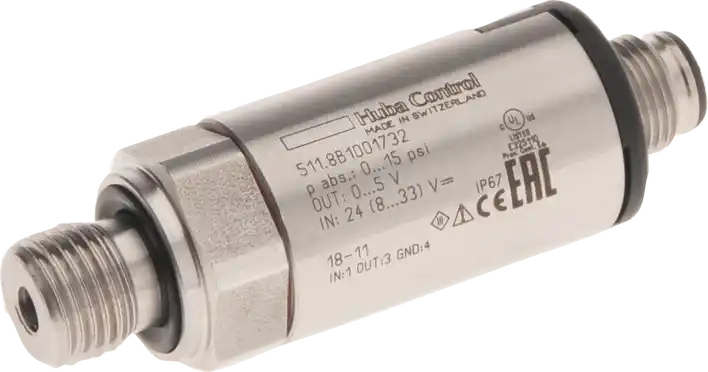

The compact pressure transmitters of Type 511 meet the highest demands in terms of robustness, accuracy, temperature stability, and EMC properties. They are therefore suitable for use in a wide range of industrial applications.

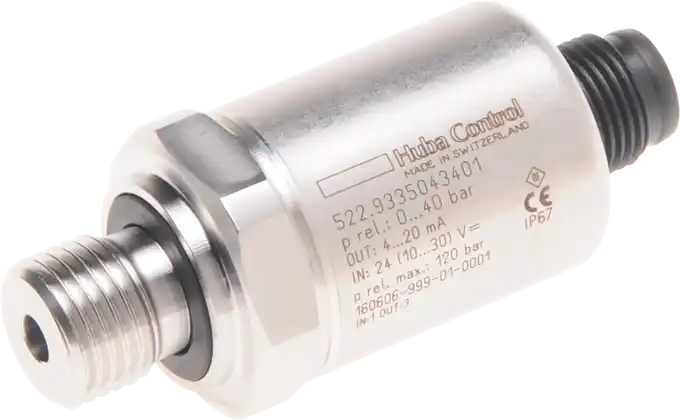

The pressure transmitters of Type 522 for the shipbuilding industry are based on the thick-film technology developed by Huba Control, which has already proven itself millions of times. The pressure measuring cell is welded to the pressure sensor without seals. The pressure transmitter features very high burst resistance and is suitable for use with liquids and gases. All pressure transmitters of Type 522 have the most important certifications for the shipbuilding industry.

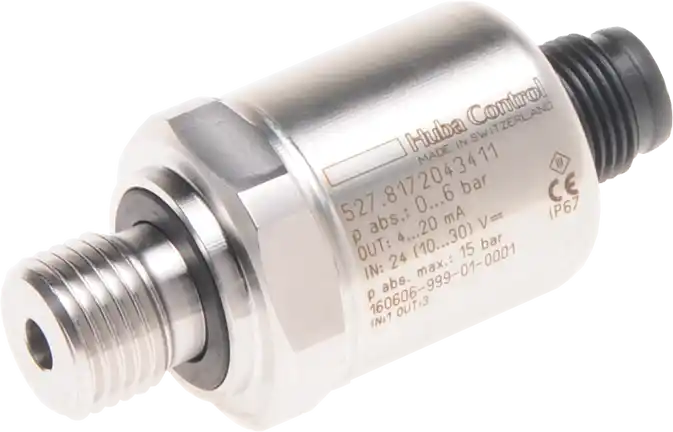

The compact pressure transmitters of Type 527 for the shipbuilding industry are based on the ceramic technology developed by Huba Control and used millions of times for over 20 years. All pressure transmitters of the 527 series are perfectly suited for use in various industrial applications and have the most important certifications for the shipbuilding industry.

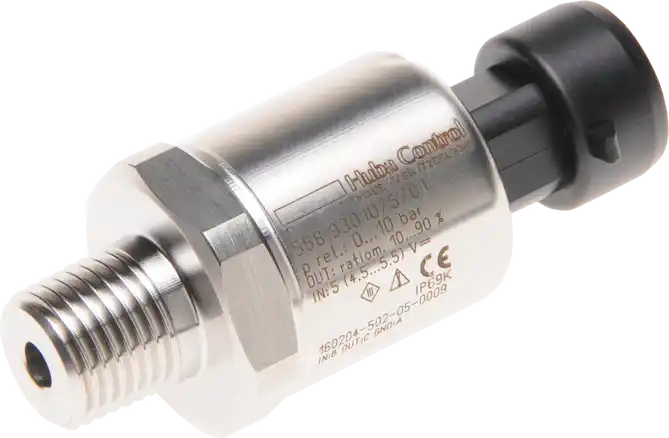

The pressure transmitters of Type 558 meet the highest demands in industry and vehicle construction. The sensor is available with IP67 or IP69K protection and can optionally be equipped with a pressure surge diaphragm for protection against pressure spikes. The compact and robust design meets the requirements for shock and vibration resistance according to automotive standard ISO 16750. The 558 pressure transmitter also ensures the highest EMC resistance according to various automotive guidelines, with test levels up to 100 V/m. The measuring cell is based on the ceramic technology developed by Huba Control and used millions of times for over 20 years.

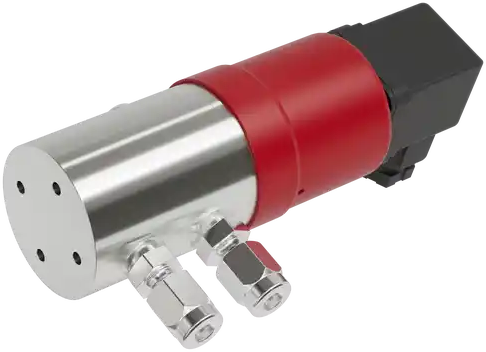

The pressure transmitters of Type 692 feature the unique and proven ceramic technology. Depending on the application, various pressure connections and electrical connections with standardized output signals are available. Due to the wide variety of options, the transmitters 692 are suitable for all types of industrial applications.
