Butterfly valves 2 – 12"/DN50 – DN300 shall be rated to 300 psi/2068 kPa/21 bar and be suitable for bi-directional and dead-end service from full vacuum to full-rated pressure. Body material shall be ductile iron with blowout proof stainless steel stems and electroless nickel coated ductile iron disc. Seat material shall be EPDM and have a full 360° continuous contact with the seating surface. Stem seals shall be of the same material grade as the seats. Disc shall be offset from the centerline of the stems and shall be connected to the stem without the use of fasteners or pins. Valve ends shall be grooved. Valve shall have standard ISO flange mounting for ease of actuation. Operators shall be as specified by choice in valve table. The standard handle valve 2 – 12"/DN50 – DN300 shall include latch lock, infinitely variable and memory stop features. Manufacturer – Victaulic – Vic-300 MasterSeal Valve or approved equal. Valve with EPDM seat is UL classfied to ANSI/NSF 61.
Designed for bi-directional, dead-end services to full working pressure. Available without handle, with gear operator, with lever lock handle and memory stop or with 10- position handle and memory stop. Sizes from 2 – 12″ |DN50 – DN300. Pressures up to 300 psi | 2068 kPa | 21 bar.
S77 Flexible Coupling
761 VIC-300™ butterfly valve
Designed for bi-directional, dead-end services to full working pressure.

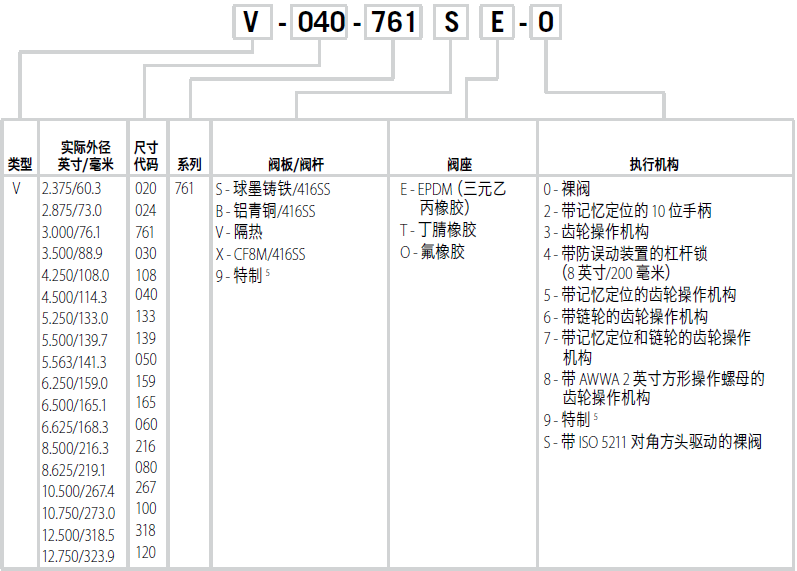

Selection of 761 VIC-300™ butterfly valve
