AMOT Model E thermostatic valves are available in a wide selection of sizes and settings to fill a multitude of fluid temperature control requirements. These valves may be mounted in any position and use the proven expanding wax principle to actuate the 3-way temperature element assemblies.
The model E valves may be used for diverting, mixing or 2-way water saving limiting valves to prevent scalding in hot water supply systems; such as in emergency water systems for labs. Radiant heating systems can use these valves in limiting water temperature to prevent surface cracking and over-heating of plastic piping. Other applications include electronic and battery cooling circuits, pump temperature relief valves etc. |
|
| AMOT Thermostatic valve Products-Model E |
|
| |
 Key benefits |
• No external power source required- Simple, low cost installation
• No user setting needed- 'Fit and forget' solution
• Small number of parts- Simple maintenance and low cost of ownership
• Robust design capable of high vibration and shock applications
• Easy installation, operates in any mounting position
• Automatic self-sensing control with positive proportional valve action |
| Key features |
• Flow rates of 0.3 - 17 m3/hr (1.3 - 75 US gpm)
• Combinations available: - Housings in cast iron, bronze, carbon steel, stainless steel
• DN15 to DN40 pipe sizes
• Threaded and flanged connections
• Tamper-proof temperature settings from 29°C - 114°C (85°F - 237°F)
• Pressure ratings up to 68 bar (986 psi) |

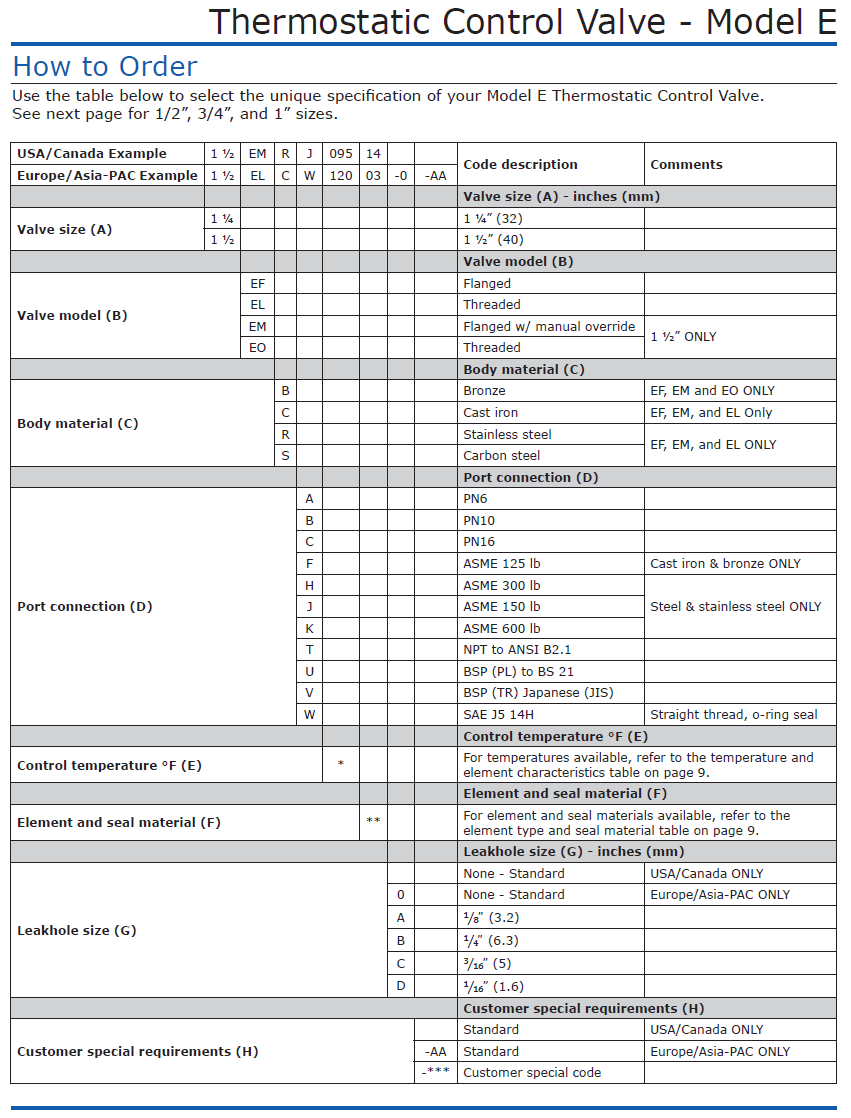

| Selection Table |
 |
|
|
