AMOT Model B thermostatic valves are available in a wide selection of sizes and settings to fill a multitude of fluid temperature control requirements. These valves may be mounted in any position and use the proven expanding wax principle to actuate the 3-way temperature element assemblies. The model B valves may be used for diverting or mixing service.
They make very economical temperature limiting valves for engine and lubricating oil cooling, and to prevent scalding in hot water supply systems; such as in emergency water systems for labs. Radiant heating systems can use these valves in limiting water temperature to prevent surface cracking and over-heating of plastic piping. Other applications include electronic and battery cooling circuits, pump temperature relief valves etc. |
|
| AMOT Thermostatic valve Products-Model B |
|
| |
 Key benefits |
• No external power source required- Simple, low cost installation
• No user setting needed- 'Fit and forget' solution
• Small number of parts- Simple maintenance and low cost of ownership
• Robust design capable of high vibration and shock applications
• Easy installation, operates in any mounting position
• Automatic self-sensing control with positive proportional valve action |
| Key features |
• Flow rates of 15 - 400 m3/hr (68 - 1750 US gpm)
• Combinations available:- Housings in cast iron, ductile iron, bronze, carbon steel, stainless steel
• DN40 - DN200 (1 ½” - 8”) pipe sizes
• Threaded and flanged connections
• Tamper-proof temperature settings from 13°C - 116°C (55°F - 240°F)
• Pressure ratings up to 45 bar (655 psi) |

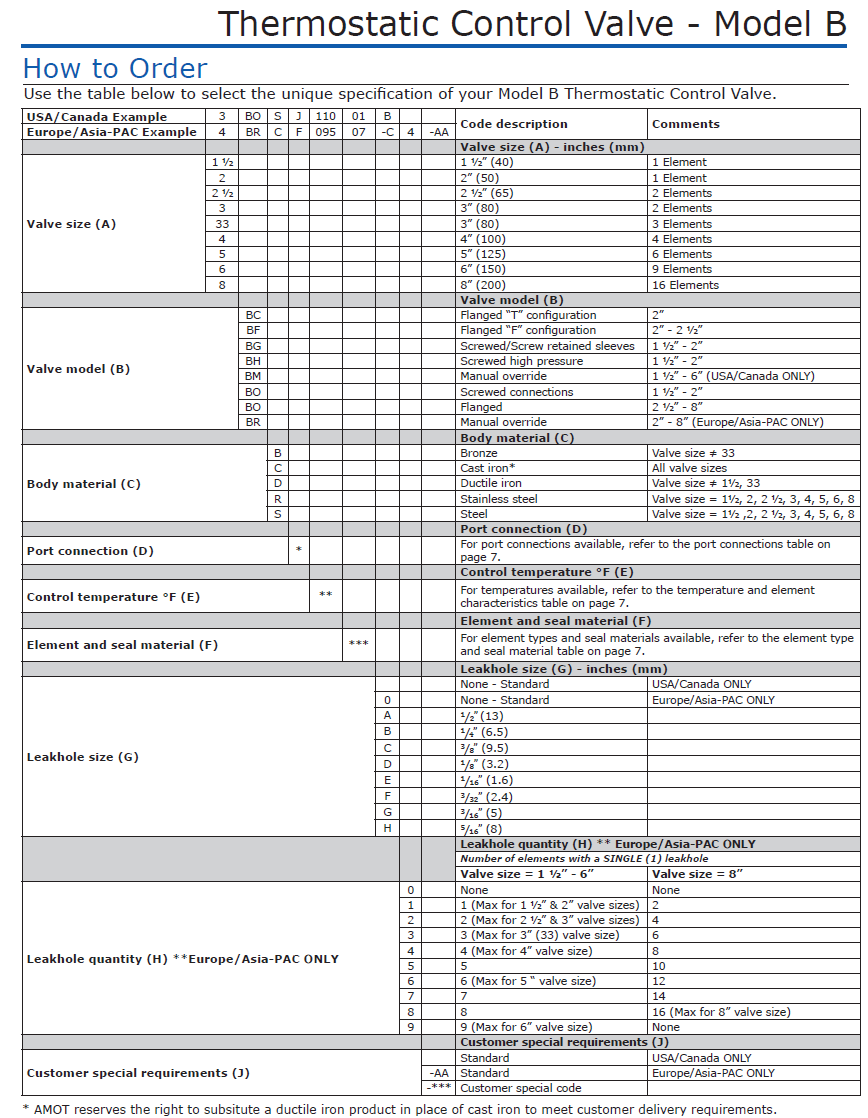

| Selection Table |
 |
|
|
